The final shape model is a deliverable that marks the completion of the hull shape design phase. It forms the foundation for all subsequent design work and must be finalized before proceeding to the next stages.
The final shape model is essential because it enables the start of the basic design stage. Attempting to move forward without a finalized model results in significant rework and inefficiencies later in the process. From this model, we can begin defining the assembly model and creating the shell expansion.

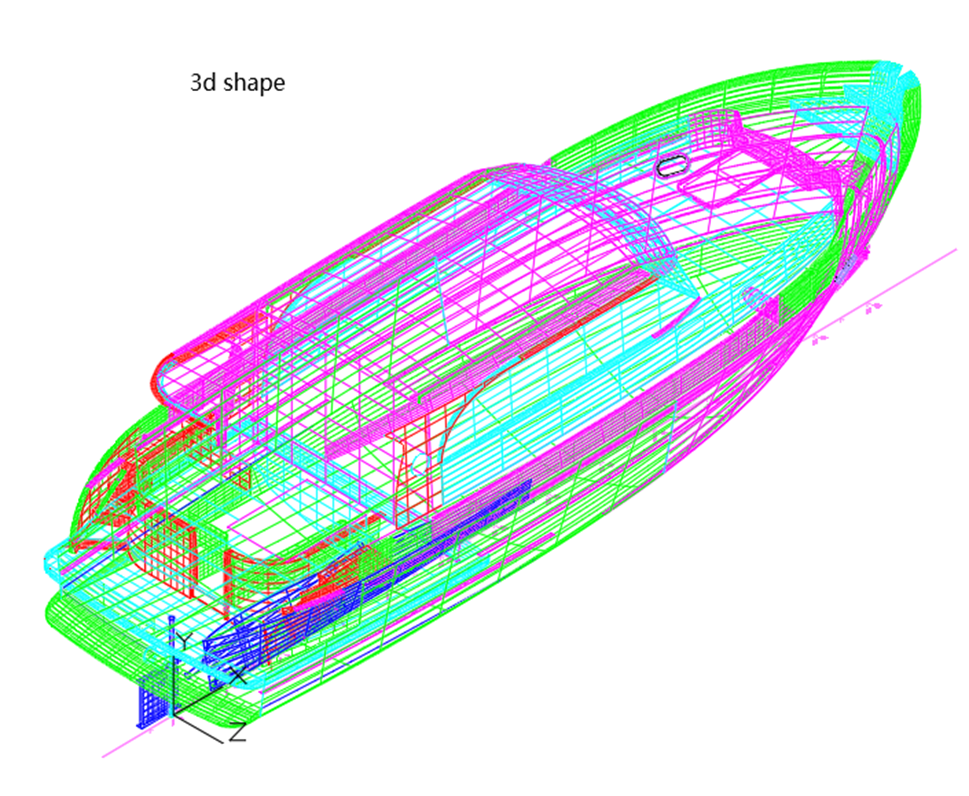

The final shape model consists of various entities including surfaces, 3D solids, and polylines. All elements are smooth and fully faired to ensure quality and continuity. The model is saved in the MasterShip Shape Database (MSD), which serves as the central repository for all shape-related data.
Which SHIP-commands apply?
- SHIPDRAWSURFACES: Once the 3D model is added to the MSD, it can be displayed at any time using this command, which allows users to visualize and work with the shape model throughout the design process.
- SHIPLAUNCHORGANISER: The final shape model is the starting point for defining the assembly model and the 3D construction. Navigate to Project > Define Assembly to begin. More detailed guidance is available in the article 'Defining sectional drawings and the assembly'.
- You can export and share this final shape model for use in stability calculations or other third-party software packages..
Next steps
Once the final shape model is complete and verified, the following next steps can be undertaken:
- Creating a shell expansion drawing – Developing the shell expansion based on the finalized hull shape.
- Defining sectional drawings & the assembly – Starting the assembly model definition to support the 3D construction process.
