This intermediate deliverable is produced after the assembly and its sectional drawings have been defined in the Organiser. The sectional drawings may still be empty at this point. It is the point at which the basic construction is started from the sectional drawings of the assembly.
In MasterShip this deliverable is presented in the assembly-file (assembly.dwg), where the sectional drawings are managed in the assembly manager. The drawings can be overviewed, changed, added or removed in all orthogonal directions (horizontal, longitudinal, frame and non-ortho).

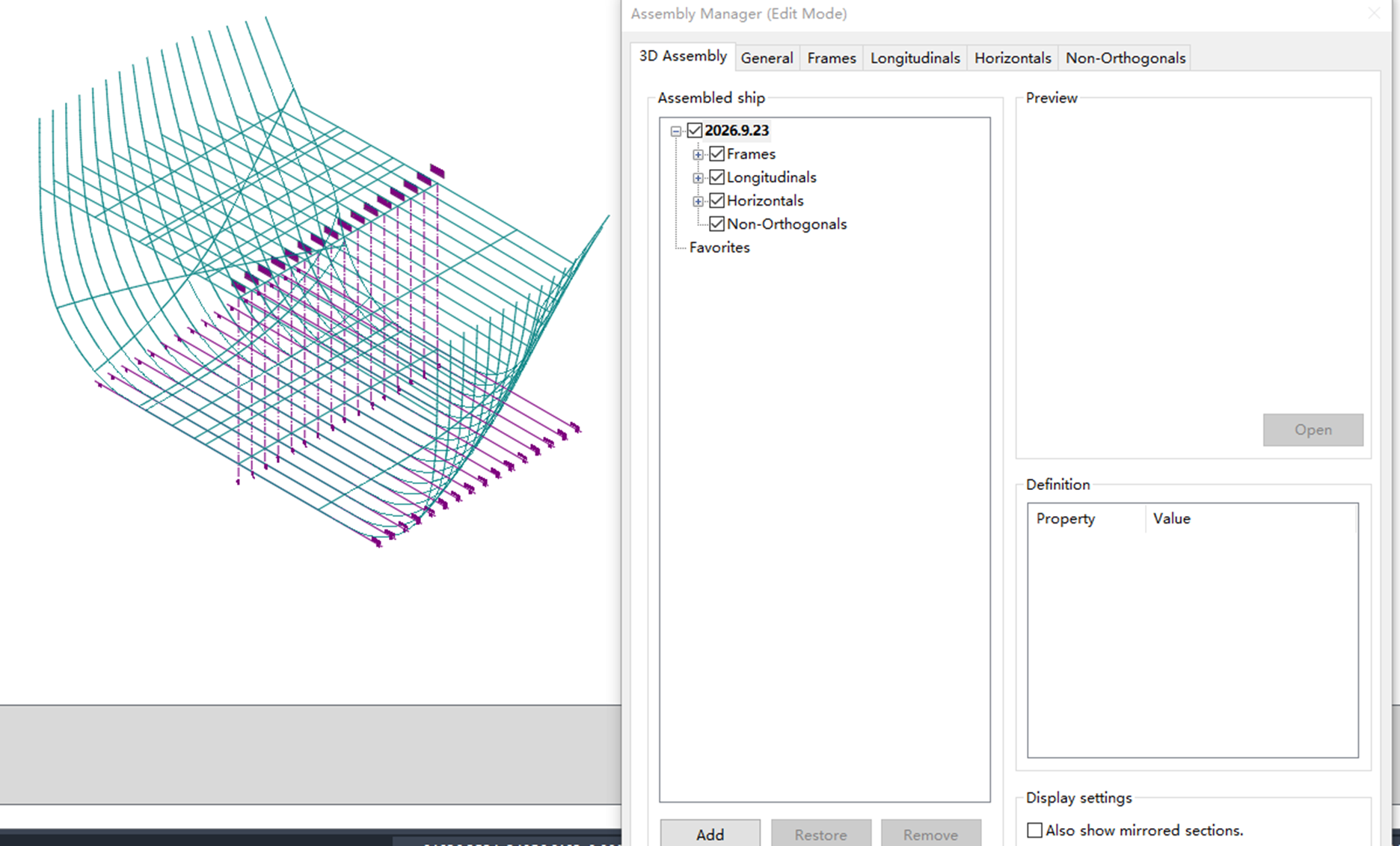

Figure 1: Assembly of a fore-ship section containing empty sectional drawings (left) , and assembly manager dialogue window (right)
Which SHIP-commands apply?
SHIPASSEMBLYMANAGER – in the assembly manager you can overview, change, add and remove drawings in all orthogonal directions (horizontal, longitudinal, frame and non-ortho). This is especially convenient if you miss certain drawings, or made a mistake or an incomplete assembly at the initial definition of the assembly via the Organiser. There is also an option to add non-orthogonal intersections.
You can also add other drawings, for example the shell expansion drawing, as xRefs to this assembly using AutoCAD-commands.
Next steps
The next step is to make the basic construction, in which the 3D construction model is further built up on the basis of its sectional drawings.
