Modifying the part and stiffener data block

Customization of the part and stiffener data  block can be done to modify it to your own company standards. In the image below, typical examples of data blocks are given.

By modifying the block, you can make more properties visible, change the layout, the scale, etc.

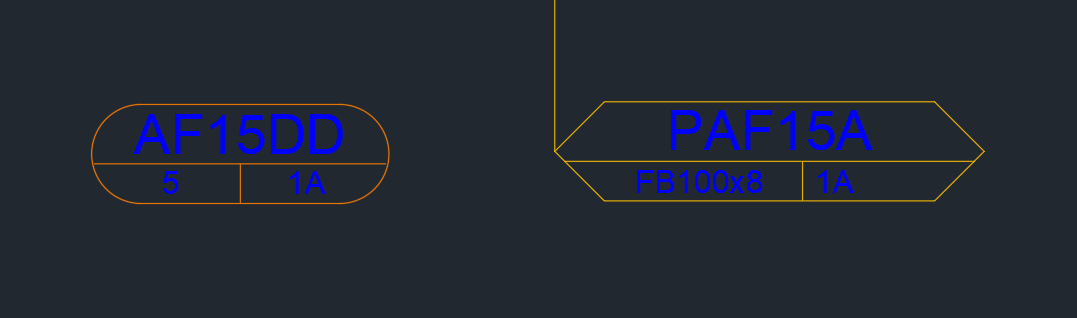

Figure 1: Example of a part (left) and stiffener data block

How to modify the data block

1. Open the file C:/.../CompanySettingsFolder/Mastership.dwg.
2. Use the command BEDIT allocate the block PARTDATA_V2001_2 or PROFILEDATA_V2004, and modify it to your own standards.
3. Save and close.

Remarks:

• You can change properties like size, position, alignment, visibility etc. of all the individual. components
• Do not change any of the names or tags.
• Please note that the changes will only occur in drawings that do not contain MasterShip parts and stiffeners yet.
